semi auto stitcher machine

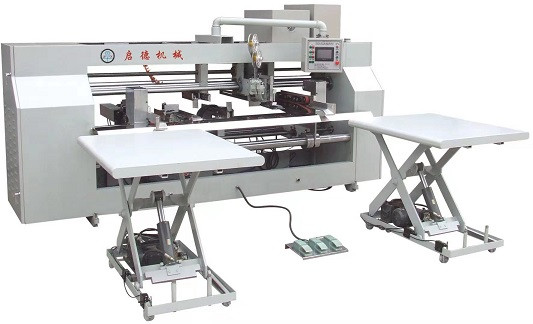

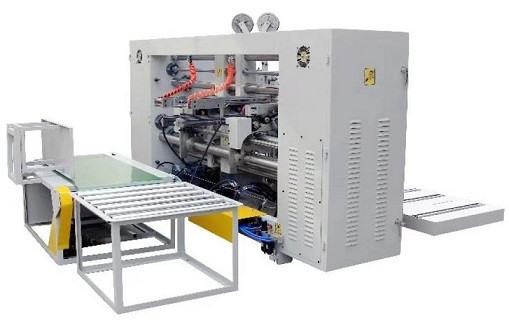

YXD 1800&2400&3000 SEMI AUTO STITCHER MACHINE

Product details

  Adopt import double servo system , the machine can stitch single , double, and unequal carton

  Adopt electric controlling system to adjust the job size

  Single nail, double nails, strengthen nail can be fulfil in one time

  Automatic counter ejector

  Suit for large carton, sped stitching and labour saving

  The data setting in the HMI , automatic adjust the stitching pitch

  Adopt electric control for size adjust, alarm shown in the LCD

  The machine can used ofr 3 layer/5layer or offset printing cardboard boxes ,uncovered boxes with bottom, 7 layer boxes needs to be customized

Stitching pitch (small-big) 30mm-120mm can be aadjust freely

Max working speed:500 stitches/minute

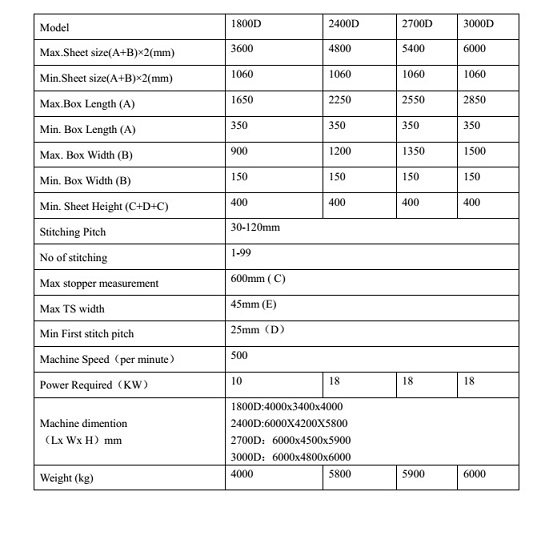

TECHNICAL  DATA
