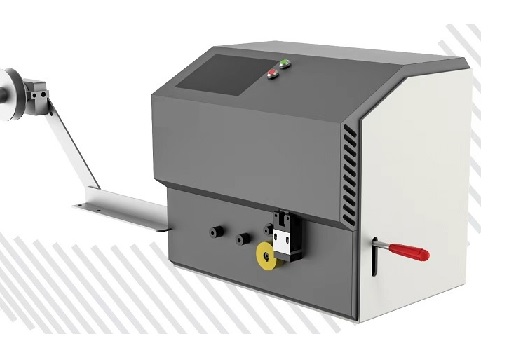

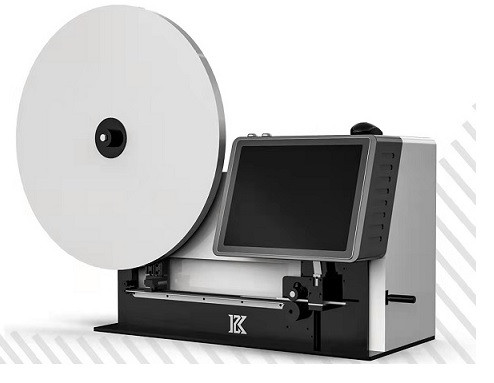

YH-100/100PRO AUTO MATRIX CUTTER




MAIN FUNCTION:

1. It is for boxmakers and large users of creasing matrix to reduce wastage, less labour time and more accurate and efficient cutting.

2. auto matrix cutter can be used in manual mode to cut single pieces or a series of pieces of the same size, or in automatic mode to cut different sizes and different types of creasing matrix after pre setting the size and quantity

3. Each job can be save into the HMI system by order name, operator can choose job name to relize automatic cutting .

4. The YH-100PRO model can read the CAD drawing directly, the operator does not need to key in the data , the system read the drawing ,cut the matrix automatically .


TECHNICAL DATA SHEET


MODEL

YH-100 AUTOMATIC MATRIX CUTTER

YH-100 PRO AUTOMATIC MATRIX CUTTER

SPEED

1-50PC/MIN

1-50PC/MIN

CREASING MATRIX RANGE

0.3-3MM

0.3-3MM

POWER

220V ,50HZ , 0.4KW

220V ,50HZ , 0.4KW

DIMENSION

45x31x45cm

88X45X60cm

WEIGHT

40kg

57KG
