   Home > Products > carton converting equipment > semi automatic carton gluer

carton converting equipment

  • semi automatic carton gluer
  • semi automatic carton gluer
  • semi automatic carton gluer
semi automatic carton gluer semi automatic carton gluer semi automatic carton gluer

semi automatic carton gluer

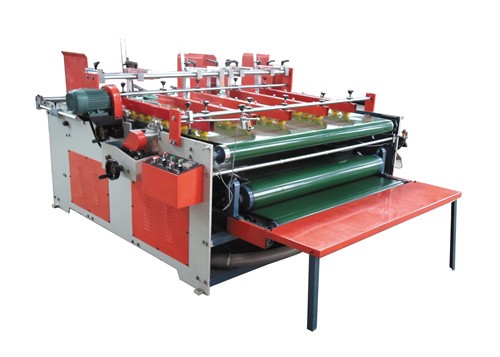

2400/2800  semi automatic carton gluer


2400/2800 Semi-auto Carton Gluer  is used for the glue of the carton, box, and special shape boxes. It can glue for 3-layer, 5-layer paperboard

The machine structure is easy, working is stable, operation is simple, production efficiency is high, gluing quality is good, production cost is very low.


Technical data :

Model

2400

2800

Max sheet size

1200*1200mm

1400*1400mm

Min sheet size

450*320mm

450*320mm

Max Machine speed

2000 pcs/hour

2000pcs /hour

Paper type

Corrugated board E/F/A/B/AB Flute. 3/5 layer board

Total power

9kw

9kw

Machine size and weight

3800x3200x1400mm

2500kg

3800x3600x1400mm

2800kg

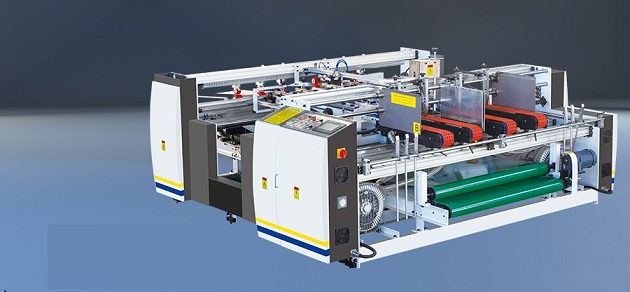

1600/1800 semi automatic lock bottom  carton gluer



The YB-1600/1800 semi automatic crash lock carton gluer can do ;

1.     straight line glue

2.     3 point gluer ( crash lock bottom)

Technical data:


Model

YB-1600

YB-1800

Max. sheet size

1600×1000mm

1800×1000mm

Min. sheet size

400×200mm

400×300mm

Paper type

Corrugated board E /F /B/AB Flute

Machine speed

Straight line box :10~60pc/min

Lock bottom box: 10~30 pc/min

Total power

1.5kW

1.5kW

Machine dimension

5750×2250×1600 mm

5750×2000×1600 mm

Total weight

2 ton

2 ton
